CAREFUSION LTV 1000
The Vyaire CareFusion LVT 1000 offers Volume Ventilation. With Noninvasive and Invasive Assisted control, controlled, SIMV, CPAP, and apnea modes of ventilation. The Vyaire LTV 1000 is a small portable ventilation that is easy to use. The Vyaire LTV provers a continuous bias flow of 10 Lpm during exhalation. The Ventilation system can be used in a variety of setting in eluding in-home care, intra-hospital transport, and emergency care settings.
- A wide range of ventilation therapies for patients—The LTV 1000 ventilator offers both invasive and noninvasive modes of ventilation in Pressure Support, Volume Control, and Spontaneous breath types, delivered with flow triggering. An O2 source can be used to bleed in oxygen. The addition of SIMV/CPAP and apnea backup combine to create powerful portable ventilation technology.
- Simple user operation—The easy-to-read LED display panel and front panel buttons combine to provide quick and convenient user operation
- Multiple power sources—A wide variety of power sources are available for the LTV 1000 ventilator. The internal battery offers an extra layer of power protection to ensure security and confidence for your patient and the caregiver. The LTV 1000 ventilator can be connected directly to a wall outlet using the LTV AC adapter, to an automobile power adapter, or to external battery options, including our SprintPack™ Battery Lithium-Ion Power System.
Specifications
Dimensions
- Size on Cart: 43.1” H x 22.3” D x 16.8” W (109 cm H x 56.6 cm D x 42.7 cm W)
- Size off Cart: 26.9” H x 20.5” D x 10.8” W (68.3 cm H x 52.1 cm D x 27.4 cm W)
- Console Weight: 84.8 lbs. (38.4 Kg) nominal (includes S.D., CRM, and He tank)
- Monitor: 9.5 lbs. (4.3 Kg) nominal
- Hospital Cart Weight: 52.4 lbs. (23.8 Kg) nominal
- Internal Battery: 34 lbs. (15.4 Kg) nominal
- Storage Bag: 4.6 lbs. (2.1 Kg) nominal (includes doppler and doppler holder))
Color Display
- Color TFT Liquid Crystal Display (LCD) 8.3”(21cm)W x 6.2”(15.8cm)H; up 45°, 10.4” diagonal (26.4 cm) down 55°, right 70°, left 70° viewing angle; Rotates 330°; Tilts 180°; Detachable; Laptop-like closure for storage and protection; Remote monitor mount (optional)
Trigger
- ECG Trigger: Threshold dynamically adjusted by the system for high sensitivity and selectivity of the R-wave detection; Minimum = 120µV ± 20µV at a normal gain; 40µV at max. gain
- Pressure Trigger: Default trigger threshold is automatically adjusted to 38% of the systolic pulse height; 7 mm minimum
- Manual threshold mode: User adjustable between 7 and 30 mmHg ± 3 mmHg
- Pacer A Trigger: R-wave detection (as above) except pacer blanking is extended to 100 ms
- Pacer V/A-V Trigger: V Pacer: fixed at a rate up to 185 bpm (no demand pacing)
- A-V Pacer: fixed at a rate up to 125 bpm (no demand pacing) with A-V intervals between 80-224 ms
Power
- Mains Voltage: 100-120 VAC ± 10% or 220-240 VAC ± 10%
- Mains Frequency: 50/60 Hz ± 3 Hz
- Internal Battery: 24 VDC (nominal), 17.2 Amp-hour, approx. 3 hrs. @ 90 bpm
- Battery Type: Maintenance free; Sealed lead-acid
Pressure
- Pressure Output: (electrically isolated)
- Pressure Range: 0 to +300 mmHg (minimum)
Operation
- Op. Temp.: 10°C – 40°C
- Op. Humidity: 5 – 95% (R.H.) non-condensing
- Op. Altitude: 0 – 12,000 feet (3,657 m); automatic altitude correction for IAB pressure
ECG
- ECG Leads: In Auto Operation Mode: I, II, III, External In Semi-Auto Mode: I, II, III, AVR, AVL, AVF, V, External (12 lead compatibility)
- ECG Gain (default): 1 V output per 1 mV input ±5% (waveform automatically scaled to occupy ECG display window)
- Gain (variable): 0.15 to 3.0 cm/mV ±20% (autoscaling disabled)
- Frequency Response: 0.5-12 Hz (display); 0.5-135 Hz (Output to External Monitor)
- Defibrillator Protection: Discharge level ≤ 360 J (trace returns to screen in 5 sec max)
- ESIS: Automatic suppression with internal ECG amplifier
Related Products
CAREFUSION LTV 950
CAREFUSION LTV 950
The Carefusion Pulmonetic LTV 950 ventilator is a lightweight, high-performance device that is designed to provide the maximum functionality. It was designed for use by adults and pediatrics weighing a minimum of 11 lbs that need positive pressure ventilation delivered invasively or noninvasively. The LTV 950 is intended for use in institutional, home care, and transport settings as a source of continuous or intermittent ventilatory support.
- Turbine technology that allows the LTV Series Ventilator to operate without an external compressed gas source.
- CPAP, SIMV, Control, Assist / Control and Apnea Backup ventilation modes.
- Volume Control, Pressure Control and Pressure Support ventilation.
- Monitors for Breath Rate (f), I:E Ratio, MAP, Minute Ventilation (VE), PEEP, PIP, and Tidal Volume (Vte).
- Weight: 13.4 lbs
PHILIPS TRILOGY 200
PHILIPS TRILOGY 200
Features
The Philips Respironics Trilogy 200 portable ventilator is lightweight and easy-to-use. The Trilogy 200 was designed for the home, hospital, and alternative care sites to provide invasive and noninvasive ventilator support for a wide range of pediatric and adult patients. Compared to the Trilogy 100, the Trilogy 200 has all the features of the 100, plus extra triggering sensitivity utilizing a proximal flow sensor. The extra triggering sensitivity decreases the work of breathing that provides increased comfort.
- Easy-to-read and navigate screens.
- Multiple prescription settings and on-screen waveforms to help optimize treatment.
- Compact size allows for greater mobility.
- Pressure and volume control features provide more types of therapy using just one device.
- Use of multiple modes that gives the caregiver greater flexibility in how care can be provided.
CAREFUSION LTV 1200
CAREFUSION LTV 1200
The Vyaire LTV 1200 is a portable ventilator. LTV Ventilator can be used in-home, intra-hospital transport, or in emergency infield use. Vyaire System comes with preset buttons for infants, pediatrics, and adult patients and can be customized per each patient’s needs. It offers both invasive and non-invasive modes of ventilation in Pressure Control, Pressure Support, Volume Control, and Spontaneous Breath Types. With the Vyaire Turbine technology, the LTV 1200 eliminates the need for a high-pressure air source.
- Quick Patient Ventilation – Choose infant, pediatric, or adult to quickly configure initial ventilation.
- More versatile than transport ventilators and significantly smaller than ICU systems.
- The O2 Conserve feature reduces O2 consumption when the time and place of care require it.
- The internal battery allows transfer from one power sources to the next without interruption.

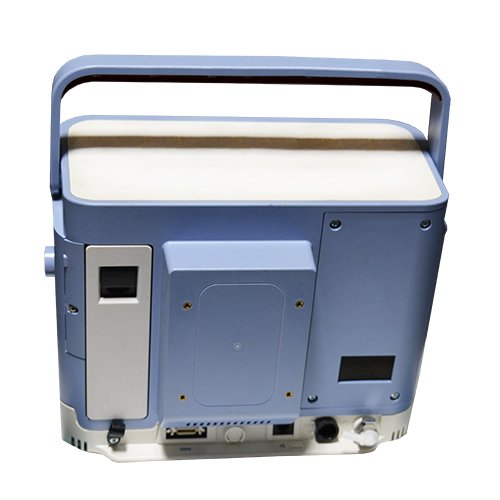

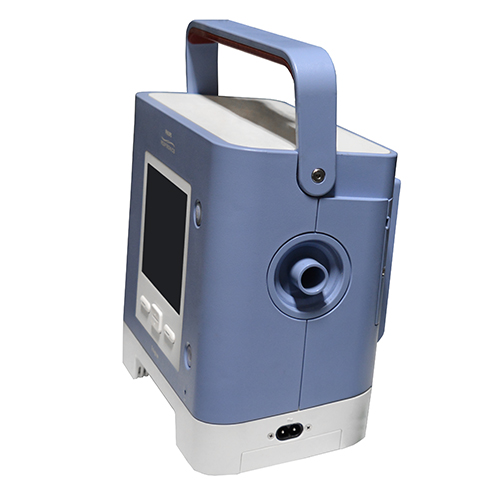

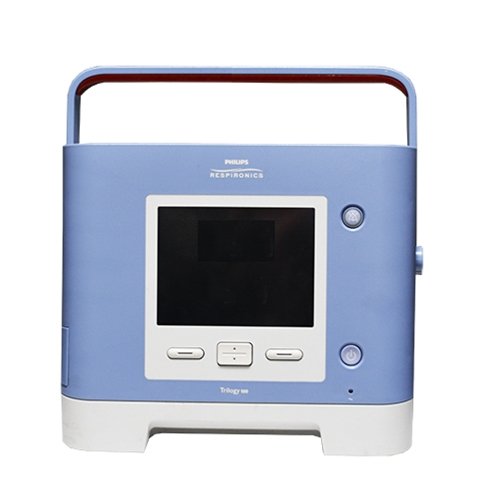

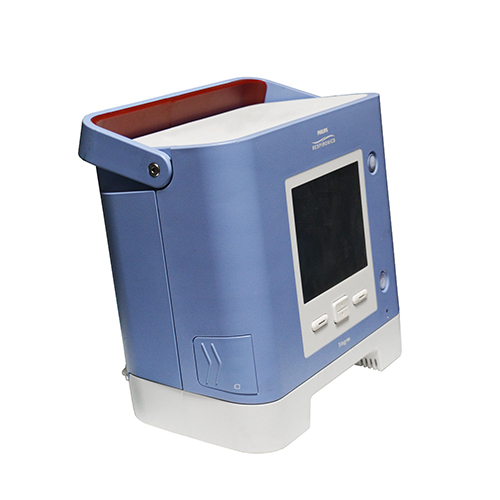

PHILIPS TRILOGY 100
