Features

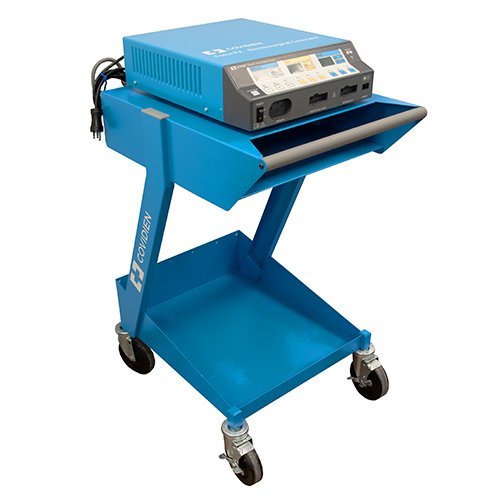

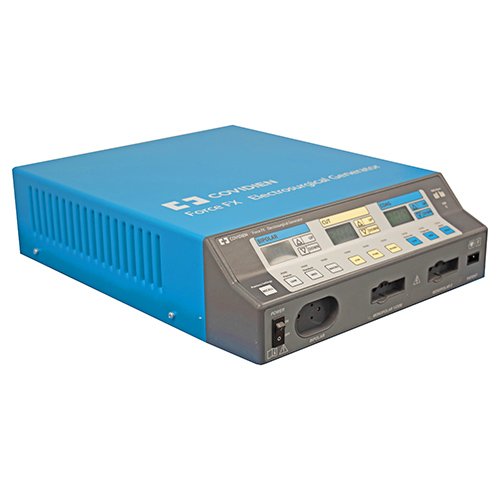

The Covidien Force FX-C is an electrosurgical generator, also referred to as the “Covidien Force FX electrosurgical generator C “ , that provides isolated output power for cutting, desiccating, and fulgurating tissue during bipolar and monopolar surgery. This Valley lab ESU automatically senses resistance and adjusts the output voltage to maintain a constant effect across different tissue densities. This adjustment is only available in bipolar or cut modes and is based on the power setting and the level of tissue resistance. It features 3 bipolar modes, 3 monopolar cut modes, 3 monopolar coag modes, and supports simultaneous coagulation. The Covidien Force ESUs support the use of CUSA System 200 , CUSA EXcel+ , and CUSA handpieces with the CUSA electrosurgical module.

• Instant Response technology ensures that the power delivered remains virtually constant, regardless of the tissue type
• Improved performance at lower power settings minimizes the risk of tissue damage and neuromuscular stimulation
• Three internal microcontrollers reduce system reaction time and increase the system’s processing speed
• Spray coagulation voltage of no more than 9000 volts peak-to-peak output for broad, but superficial coagulation with limited capacitive coupling
• A Power Efficiency Rating (PER) of approximately 98 for accurate and consistent cut performance
• Three cut modes, all controlled by Instant Response™ technology, offer surgeons a variety of choices:
  • Low Cut for delicate tissue or laparoscopic cases
  • Pure Cut for a clean, precise cut
  • Blend for cutting with hemostasis
• Four coag modes:
  • Desiccate for low voltage contact coagulation suitable in laparoscopic and delicate tissue work
  • Fulgurate (high crest factor) for efficient noncontact coagulation in most applications
  • Fulgurate (low crest factor) for lower voltage coagulation requirements
  • Spray for coagulating large tissue areas with superficial depth of necrosis
• Three bipolar modes:
  • Precise, Standard, and Macrobipolar are controlled by the Instant Response™ system
  • Precise and Standard setting utilize low voltage to prevent sparking
• Versatile system that is uniquely compatible with other devices, including:
  • Force Argon™ II and Force GSU™ argon coagulation system
  • CUSA EXcel™ and CUSA™ 200 ultrasonic surgical aspirators
  • OptiMumm™ smoke evacuator, through a direct cable link
  • Valleylab VLCM bipolar current monitor
• Compatible with and used as the electrosurgical energy source for:
  • Dyonics* Control RF arthroscopic ablation system
  • Dyonics* Electroblade™ rotary resection system
  • Cook Vascular Perfecta™ EDS pacemaker lead extraction system
• Compatible with, and the exclusive electrosurgical generator for, the Computer Motion Hermes™ Voice Command system
