MAQUET SERVO U
Features

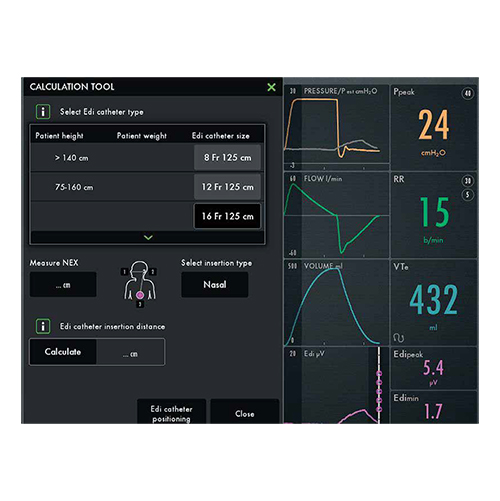

The Maquet Servo-U is a ventilator that is intended for intensive care. The Servo-U gives the medical professional more ways to tailor each ventilation treatment to each patient while still protecting the integrity of their lungs. these phases of ventilation include controlled, supported, non-invasive, and spontaneous breathing. With a larger touch screen display it is easy to view and adjust the patient’s parameters. The Display screen can be rotated 360 degrees so it can be read no matter what side of the patient’s bed it is put on.
Tools to support protective ventilation strategies.
Context-based guidance, therapeutic workflows and intuitive user interaction for all functions.
Upgradeable platform to meet future needs.

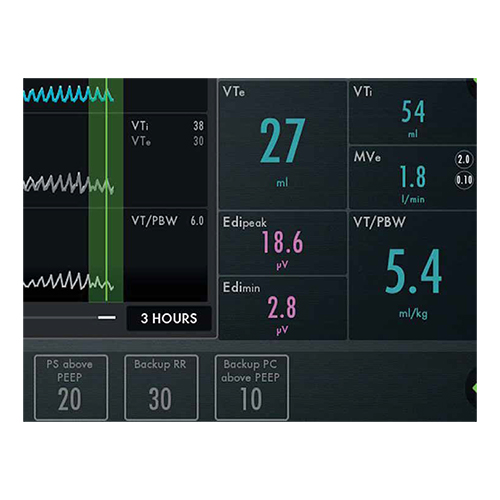

Automatic Calculation of VT/PBW.
On-Screen Tutorials.
Ergonomic Design.

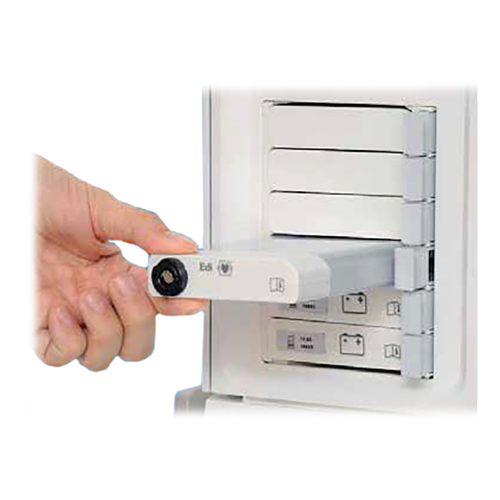

Interchangeable Product Modules.
Specifications
Dimensions (Without Cart)
- Height (Includes user interface): 32.5 in (82.6 cm)
- Width: 14.5 In (36.8 cm)
- Depth: 8.1 In (20.5 cm)
Weight (Without Cart)
- Approx. 50 lb 11 oz (23 kg)
- Patient unit 33 lb 1 oz (15 kg)
- User interface 8 lb 13 oz (4 kg)
- Handle 7 lb (3 kg)
- Cable holder and cable 2 lb 3 oz (1 kg)
Dimensions (With Cart)
- Height (Includes user interface): 53.9 in (136.8 cm
- Width (Includes Wheels): 25.5 In (64.7 cm)
- Depth (Includes Wheels): 21.5 In (54.7 cm)
Weight (With Cart)
- Approximately 77 lb 3 oz (35 kg)
- Base system approx. 50 lb 11 oz (23 kg)
- Mobile cart 27 lb 9 oz (12.5 kg)
General
- Patient range:
- Neonatal: 11 oz to 17 lb 10 oz (0.3 to 8 kg)
- Standard Configuration: 7 lb to 551 lb 2 oz (3 to 250 kg)
- Bias Flow
- Adult: 2 l/min
- Pediatric and Neonatal: 0.5 l/min
- Internal Compressible Factor: Max. 0.2 ml/cmH2O
- Gas Delivery System: Microprocessor controlled valves
- Maximum Airway Pressure: 125 cmH2O
- Method of Triggering: Flow, pressure, and Edi (with Edi module and Edi catheter)
- Inspiratory Flow Range:
- Adult: 0 to 200 l/min
- Pediatric and Neonatal: 0 to 33 l/min
- Pressure drop:
- Max. 6 cmH2O at a flow of 60 l/s (insp. channel)
- Max. 3 cmH2O at a flow of 60 l/s (exp. channel)
- PEEP Regulation: Microprocessor controlled valve
- Rise Time, Expiratory Flow Measurement: <12 ms for 10% to 90% response at flow of 3 to 192 l/min
- Expiratory Flow Range: 0 to 192 l/min

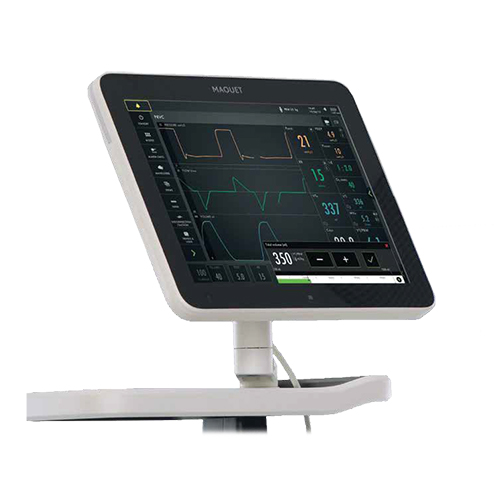

User Interface
-
- Type TFT-LCD touchscreen
- Size 14.4 x 11.8 in (366 x 300 mm)
- Viewing area 15 in XGA, 1024 x 768 pixels with a 24-bit color palette
- Weight Approximately 8 lb 13 oz (4 kg)
- Power supply, automatic range selection:
- 100V to 120V AC, 2.5 A, 50 to 60 Hz
- 220V to 240V AC, 1.5 A, 50 to 60 Hz
- External 12V DC: 12.0V to 15.0V DC, 10 A
- Typical min. power consumption (no optional modules, no ongoing battery charging, normal panel backlight) 110 VA, 40 W
- Typical max. power consumption (with CO2, Edi and Y sensor modules, ongoing battery charging, max. panel backlight) 210 VA, 85 W
- Plug-in battery module:
- Battery backup (nickel-metal hydride, NiMH) Six battery module slots — two batteries are delivered with the ventilator
- Battery capacity Rechargeable, 12V, 3.5 Ah each
- Battery backup time Ranging from 50 minutes (2 batteries) to 150 minutes (6 batteries)
- Recharge time Approximately 3 hr/battery
Operating Conditions
- Temperature 50° to 104ºF (10° to 40ºC)
- Relative humidity 15% to 95% non-condensing
- Atmospheric pressure 660 to 1060 hPa
- Lowest pressure in patient circuit -400 cmH2O
Non-Operating Conditions
- Temperature -13° to 140º F (-25° to 60ºC)
- Relative humidity <95% condensing
- Atmospheric pressure 470 to 1060 hPa
- Lowest pressure in patient circuit N/A
Related Products
CAREFUSION VELA
CAREFUSION VELA
Features
The Vyarie Carefusion Vaisys Vela is a ventilation system that offers both non-invasive and invasive means of ventilation for adult and pediatric patients. The Vela is a High-performance ventilator that is perfect for a variety of settings from emergency rooms, ICU, and even long-term care. The Vyaire Vela is available in different modes and can be customized to your specific ventilation needs. Its precise controlled gas delivery and active exhaust give you the precise treatment that is needed for each patient. The Vyarie Ventilator comes with a collar LCD touchscreen and simplified controls make it easier to use.
- Full function conventional ventilator and noninvasive positive pressure ventilator (NPPV)
- Multiple modes of non-invasive ventilation
- Ventilations that is independent of air source
- Six hour battery capacity

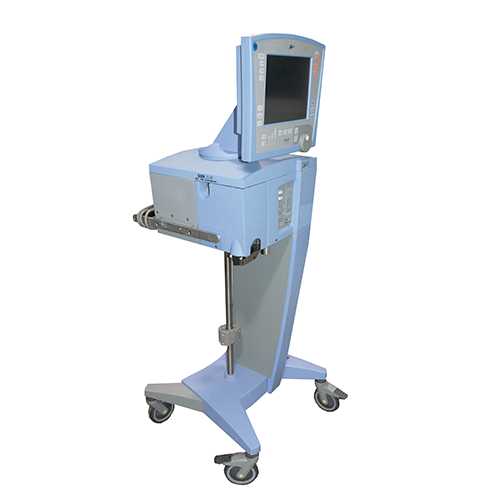

CAREFUSION AVEA
CAREFUSION AVEA
Features
The Vyaire Carefusion Avea Ventilator can provide a wide range of ventilation modes with clinical tools and advanced monitoring. The Vyaire CareFusion Aveacan offer critical care ventilation in both non-invasive and invasive ventilation modes for neonate, pediatric and adult patients. Some of the advanced tools include; BiCore Pulmonary monitoring, Heliox administration, and Volumetric Capnography. The Ventilator runs off of a Servo-controlled, software-driven ventilation system. as well as a user interface module that can maximize the flexibility of the ventilation to fit each patient’s needs. The front panel has a larger LCD touch screen making it easy to see the parameters being monitors while still being able to easily make changes.
- This ventilator offers precision gas delivery system supplies accurate volumes.
- Active exhalation valve on the CareFusion Avea promotes ventilator synchrony and comfort for your patients.
- Volumetric Capnography gives clinicians more accurate tools to aid in quicker reaction during critical situations.
- Accurate esophageal pressure measurements.
The AVEA provides a comprehensive array of modes and advanced features that keep you focused on your patient, not the equipment:
- Volumetric capnography—Equipped with this option, this ventilator adds another key piece of information to provide improved monitoring of the patient’s condition. When tied with exclusive BiCore technology, this powerful tool provides the most comprehensive monitoring array of any ventilator available.
- Precision gas delivery system—Supplies accurate tidal volumes from 2 mL to 2.5 L and was the first of its kind to automatically compensate for heliox gas delivery.
- On-board compressor—The optional onboard air compressor can meet your patient’s needs whether in the intensive care unit (ICU) or moving to computerized tomography (CT) scan. This powerful scroll compressor can only be found on the ventilator and is capable of operating the ventilator for up to two hours on battery.*
- Communication—Three different serial protocols can be selected from the utility screen to simplify integration with hospital information systems or remote alarm monitoring.
DRAGER EVITA XL
DRAGER EVITA XL
Features
The Drager Evita XL ventilator is a feature-rich design that helps caregivers deliver optimal ventilation from implementation to the weaning process. The monitor quickly responds to individual patient requirements and ventilation situations, increasing patient comfort, and safety.
The Drager Evita XL Ventilator offers mask ventilation with NIV plus, which in many cases reduces the need for intubation. When intubation is necessary, the ventilator’s integrated CO2 monitoring helps caregivers ensure correct placement and metabolic stability. Select workflow support functions, including routine O2 suction or automatic P0.1 measurement, can also simplify clinical routines. A unique trolley system allows staff to easily maneuver the Drager Evita ventilator throughout the care facility.
- Versatile unit responds quickly to individual patient requirements and changing ventilation situations.
- Mask ventilation with NIV plus available in all modes with comprehensive monitoring and alarm adaptation.
- Integrated CO2 monitoring helps verify correct intubation and metabolic stability.
- Lung protection package offers low flow P/V maneuver to identify optimal-PEEP and pressure settings for lung protective ventilation.
- Open breathing system with AutoFlow or PCV+ allows spontaneous breathing in all ventilation modes.
- Workflow support functions streamline clinical routines.
- NeoFlow offers flow measurement at the Y-piece for fast response to patient triggering, leakage adaptation, and precise volume delivery for neonates.
- SmartCare / PS automated weaning system provides continuous vigilance for opportunities to reduce the level of ventilator support.
- Automatic tube compensation supports respiratory independence during the weaning process.
- Open breathing system with Mandatory Minute Ventilation ensures that patients, from neonates to adults, will receive the set minute volume, regardless of the spontaneous breathing level.
- Maneuverable trolley for movement throughout care facility.

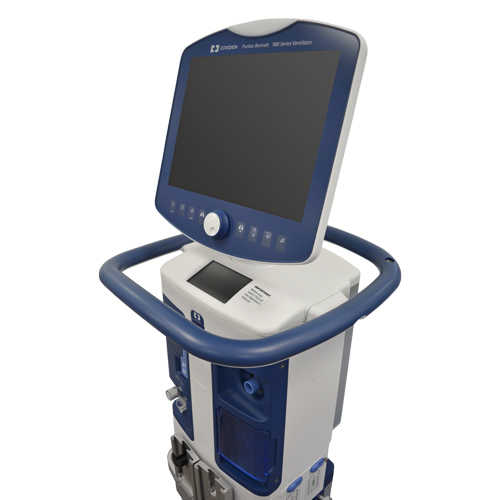

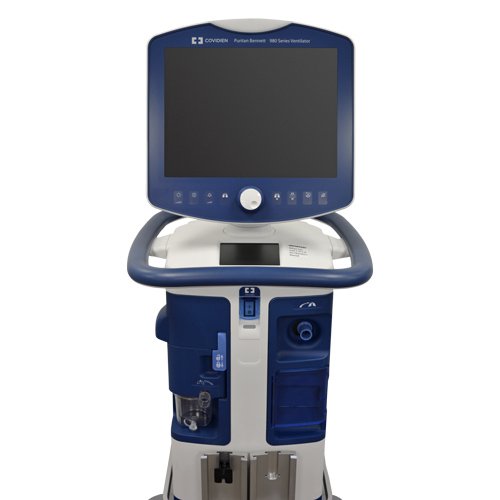

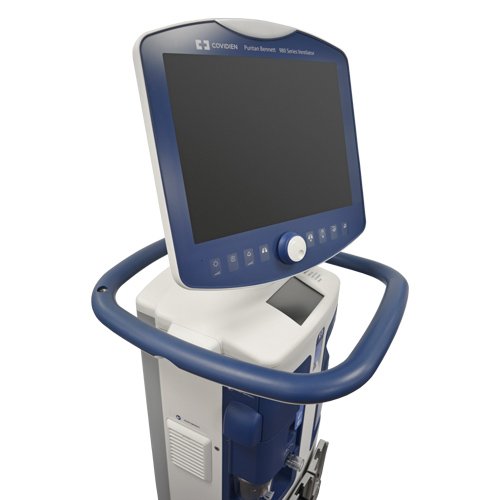

COVIDIEN PURITAN BENNETT 980
COVIDIEN PURITAN BENNETT 980
Features
The Covidien Puritan Bennett 980 ventilator provides mechanical ventilation from neonatal patients to adults who require respiratory support. The PB 980 can be used for intra-hospital transport to provide continuous ventilatory support with oxygen and compressed medical air from an internal air compressor or external air source. This Medtronic ventilator delivers oxygen concentrations 21% to 100%. The PB980 can administer ventilatory support to patients invasively or non-invasively who require positive pressure ventilation, assist/control, SIMV, or spontaneous modes of ventilation. It can be used in areas such as general care floors, operating rooms, and intensive care units. This Puritan Bennett Ventilator also has a battery backup that provides power in case AC power is lost.
- Simple, easy-to-use, and highly customizable touchscreen user-interface.
- 15” display that rotates 170° about a vertical axis in either direction.
- Display shows ventilator, apnea and alarm settings, patient data, waveforms, and current alarm banners.
- Unique ventilator assurance feature that will continue to deliver ventilatory support as close to the preset setting in the event of certain system failures.
