PHILIPS VM 6
Features

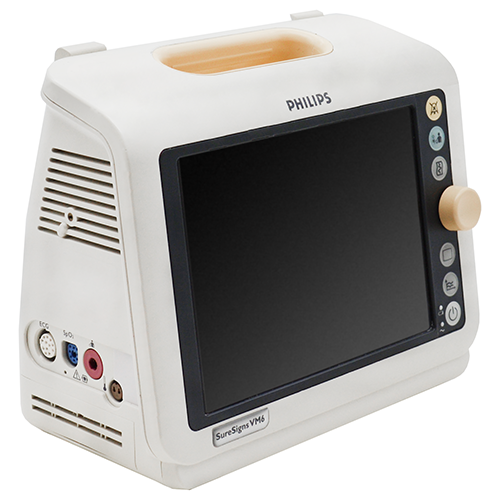

The Philips SureSigns VM6 is a patient monitor that can also do vital signs. The SureSigns VM6 has a small compact design that makes it easy to move with the patient and can be used for all patients, neonates, pediatric and adults. The handheld monitor offers a bright LCD color screen to see all the parameters measured. The Display can show up to 4 different waveforms and numeric readings at once. The parameters include; non-invasive blood pressure, SpO2, Respiration, basic arrhythmia, and 3 or 5 lead ECG. The SureSigns VM6 offers a UBS port for exporting data and updating the internal software.
- LCD Color Screen
- Intuitive Navigation; making frequently used test easily available
- Optional Recorder
- Lithium Battery
- Bright, color backlight screen
- Audio and Visual alarm system
- 4 display modes: Numeric, Numeric with wave form, Tabular Trend, Graphical Trend
- Front panel icons show battery status
- Stores up to 96 hours of trending data
- Compatible with Adult, Pediatric and Neonatal patients
Specifications
Dimensions
- Width: 26 cm
- Height: 22 cm
- Depth: 14.5 cm
- Weight: 7.1 lbs
Display Screen
- Size: 8.4 in/20.3 cm
- Type: SVGA TFT-AM LCD
NBP
- Oscillometric using stepwise deflation pressure
- Adult/Pediatric Measurement Range: Systolic: 30–255 mmHg; Diastolic: 15–220 mmHg; Mean: 20–235 mmHg
- Neonatal Measurement Range: Systolic: 30–135 mmHg; Diastolic: 15–110 mmHg; Mean: 20–125 mmHg
- Blood Pressure Accuracy: ±5 mmHg
- Pulse Rate Accuracy: ±2 bpm or ±2% (whichever is greater)
IBP (optional)
- Range: [-40] – 360 mmHg
- Accuracy: ±4 bpm or ±4% (whichever is greater)
SPo2
- Meets EN ISO 9919 standard
- Measurement Range: 0 – 100%
- Accuracy: Depends on the sensor
ECG
- 3 or 5-lead
- Heart Rate Range: 15 – 300 bpm
- Respiration Rate Range: 4 – 150 rpm
Temperature
- Mode: Continuous
- Method: Esophageal, rectal, or skin
- Range: 25 – 45OC (77.0 – 113.0OF)
- Accuracy: ±0.1OC
Battery
- Lithium ion, 11.1V
- Operating Time: 4 hours with continuous monitoring and NBPs every 15 minutes
Data Output
- HL7 format, via Ethernet port
Patients
- Adult, pediatric, neonatal
