The Zeiss OPMI Neuro NC-4 Surgical Microscopes is one of the most successful neurosurgical systems by Zeiss. It has been established as one of the best-integrated imaging systems. With its legendary optics and ergonomic innovations, making it the ideal microscope for most neurological suites. The OPMI Neuro NC-4 is one of the first Zeiss Surgical microscopes to integrate a Heads-UP Display and AutoFocus. This scope will accommodate most neuro-navigational systems. The immediate precursor to Zeiss’ latest Opmi Pentero, this was a Zeiss standard for many years. When Zeiss engineered this system, they had in mind easy balancing as well as seamless integration of the optics, mechanics, and electronics. This microscope doesn’t stray too far from the bells and whistles of the Pentero, while cutting the price tag by more than half.
- Microscope produces razor-sharp images with an unprecedented level of detail for improved surgical workflow.
- Entire optical system now features apochromatic coatings, ensuring outstanding color fidelity free of distortions.
- One microscope for every image guided platform: BrainLAB, CBYON, Medtronic SNT, Radionics, Visualization Technology, and more.
- Unique AutoFocus technology allows clinicians to quickly produce perfect images every time.
- Versatile microscope was designed to accommodate virtually any neurological surgery setup.
- Ergonomic controls were designed with the user in mind.
- Handgrips can be used to control every major microscope function without the need of a surgical assistant.
- Unobtrusive handgrips are mounted below the OPMI, allowing clinicians to easily pass instruments in and out of the surgical field.
- The entire handgrip can be adjusted under the surgical drape and can be rotated 180 degrees for easy access.
- Both binoculars can be easily rotated for cross-table procedures.
- Optional — multi-function foot-control panel permits ergonomic control of all of the microscope’s functions, (i.e. zoom, focus, and AutoFocus) with one foot.
- Easy Balancing
- Brilliant, Clear Optics

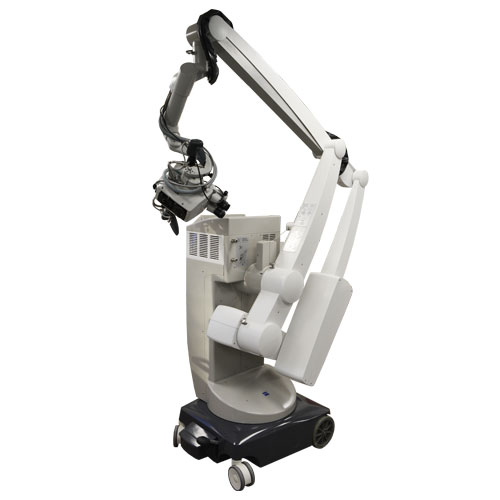

- Zeiss Opmi Neuro Microscope
- NC-4 Floorstand
- 300 W Xenon Light w/Halogen Backup
- Fiber Optic Cable
- Variable, Motorized Focal Distance
- 2 0-180 degree inclinable binoculars
- Face to face bridge
Specifications
Tube/Eyepieces
- Removable tiltable tube
- Tilt range 180°
- Focal length f = 170 mm
- 10x screw-type widefield eyepieces with integrated eyecups. This equipment provides full illumination of the field of view.
Objective Lens
- Varioskop objective lens
- Working distance: approx. 195 … 420 mm
- Motorized, adjustable speed. Manual adjustment possible (emergency mode).
- Sensor for working distance for neuro navigation.
Magnification
- Focusing range: approx. 195 … 420 mm
- motorized autofocus, manual triggering,
- motorized autofocus, automatic triggering, or
- manual focusing with knob on microscope body
Overall optical system with 10x widefield eyepieces
- Total Magnification
- Beta min.(fmin / fmax) 2.2 / 1.3
- Beta max.(fmin / fmax) 13.4 / 7.6
- Field-of-view diameter
- Beta min.(fmin / fmax) 93 / 163 mm
- Beta max.(fmin / fmax) 15 / 27 mm
Depth of Field
- Double iris diaphragm for adjusting the depth of field. Image brightness decreases as depth of field increases.
- The brightness of data injection remains unaffected.
Video Port
- Integrated video port for
- 1-chip 1/2″ cameras
- 3-chip 1/2″ cameras.
- Focal length f = 67 mm Zeiss camera system (C-mount interface)
- 3D option with additional 3-CCD camera
Weight
- aprox. 8 kg
NC 4 Stand Specifications
Power Requirements
- Only connect the suspension system to power outlets which are provided with a properly connected protective ground conductor.
Rated Voltage
- 115 VAC (100…125 VAC ± 10%)
- 230 VAC (220…240 VAC± 10%)
Current consumption
- 115 VAC max.
- 12 A 230 VAC max. 8 A
Rated Fuse
- 50 – 60 Hz
Fuses
- Automatic circuit breaker
Electrical Outlets
- Power outlet 115/230 V, max. 2 A
- Power outlet 115/230 V, max. 2 A
- switched via S1 power switch on NC4 floor stand
Superlux 301 high-intensity light source
- Light source for light guide
- 300 W xenon lamp (do not use for applications in ophthalmology)
- spectrum similar to that of daylight (permits the use of daylight film for photography)
- adjustable brightness 100 W halogen lamp
- backup illumination
