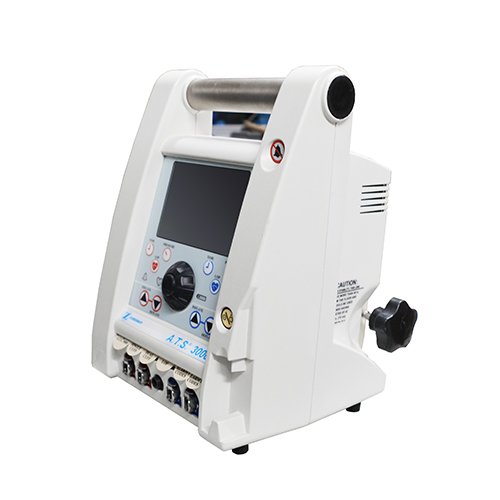

ZIMMER ATS 3000
Features
The Zimmer A.T.S. 3000 is a pneumatic tourniquet that is electric. The ATS 3000 system has a dual-port and dual-cuff that is connected to a microprocessor. The Zimmer Tourniquet features Limb Occlusion Pressure, where the machine can calculate the amount of pressure that is needed to help reduce the blood flow. The tourniquet uses ambient air instead of nitrogen tanks. The Zimmer A.T.S. 3000 comes with a four-hour battery backup and a carrying handle, making it easy to transport and not lose pressure while in transit.
- Innovative Limb Occlusion Pressure(LOP) feature.
- Uses ambient air.
- Uses electronic and microprocessor regulated pressure.
- Self-Check Calibration automatically checks the accuracy of the machine calibration each time the unit is powered on.
- Cuff Alert alerts the user of cuff status when an attempt is made to set the machine on standby.
- Cuff Lockout feature prompts the user to confirm the deflation command during bilateral or IVRA procedure in order to reduce complications due to sudden cuff deflation of the second cuff.
Specifications
Dimensions
- Height: 13” (33.02 cm)
- Width: 9.5” (24.1 cm)
- Depth: 10.4” (26.4 cm) (Including clamp and ports
- Weight: 16.3 lbs (7.4 kg)
Power
- Mains Line Voltage Range: 100–240V ~ (AC), 50/60 Hz. Auto switching
- Line Current: 670 mA RMS @ 120V ~ (AC)
- Input Power: 53 Watts typical
- Battery Type: Rechargeable, 12 VDC sealed lead acid, 4.0 amp hours
- Battery Discharge Time: Unit will operate on battery power for 240 minutes minimum with a fully charged battery.
- Battery Recharge Time: 24 hours. The unit should be plugged in 24 hours before initial use.
- Power Cord: Type SJT, AWG 16, 14 ft. (4.27 m)
- Power Plug: Hospital grade, 3-prong straight blade, 15 amp
- Line Protection: 2 time delayed 1.0 amp 250-volt fuses
Pressure
- Cuff Pressure Range: 50–475 mmHg, 1 mmHg increments
- Pressure Accuracy: ±3 mmHg (50–475 mmHg)
- Pressure Regulation: ±4 mmHg of set point (10 second average under nontransient conditions without external leaks)
- Maximum Pressure: 475 mmHg cuffs
Timer
- Time Alarm Set Range: 5–240 minutes; 1-minute increments
- Timer Accuracy: 0.25% of elapsed time
Internal Diagnostics
- Program, memory, watchdog timer, transducer calibration, improper valve actuation.
Related Products
ZIMMER ATS 2000

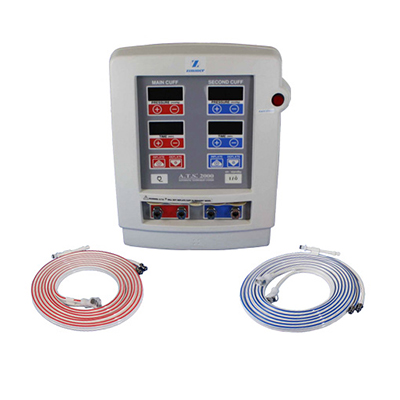

ZIMMER ATS 2000
Features
The Zimmer ATS 2000 is the next generation from the ATS 1500 tourniquet system. The zimmer ATS 2000 is a dual pump system that allows for Bier Block procedures. Feel free to inquire about Zimmer, Scanned, and Expressaire tourniquet cuffs and hoses. Single & Dual Port Options: All cuff styles are available in both single and dual-port configurations, allowing for use with any A.T.S. tourniquet regulator. Single port cuffs for use with the A.T.S. 750 and A.T.S. 1200 Tourniquet Systems. Dual-port and Bier Block cuffs for use with A.T.S. 1500 and 2000 Tourniquet System.
- Two independently operating cuffs for IVRA procedures
- Customizable alarms, pressure settings for each unique situation
- Microprocessor control for improved reliability and added safety during IVRA cuff switching
- Automatic calibration, self-tests at every startup
- Modular design for easy service and repairs
- Lightweight unit is easily portable
- Internal reservoir for faster inflation
- Clear, bright LED display
- Alarms for pressure, time, low battery, hardware failure
- Adjustable alarm volume
- Built-in battery charger
ZIMMER ATS 4000

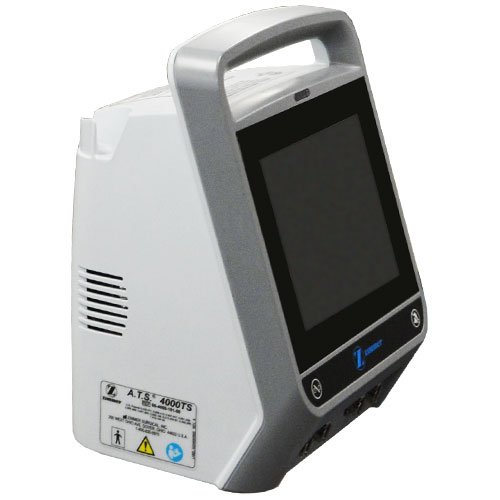

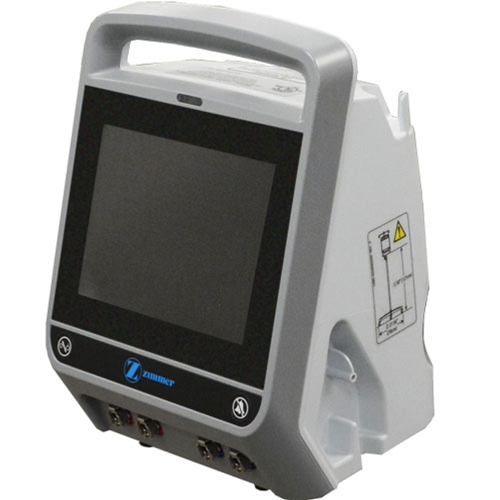

ZIMMER ATS 4000
The Zimmer ATS 4000 is a tourniquet system that is used to temporarily occlude blood flow in the patient’s extremities during a surgical procedure. The ATS 4000 was designed to offer individual levels of pressure for each patient. Delivering a variety of pressures at specific times and for specific limbs. The Zimmer ATS 4000 offers a dual cuff that can prevent accidental cuff release with an automatic IVRA Cuff Lock – making sure deflating is intended on the second cuff. Zimmer offers lower tourniquet pressure to help minimize the risk of nerve-related injuries and less post-op pain.
- Personalized Pressure Technology
- Touchscreen User Interface
- 8.4″ Color Display
- Self-check Calibration: automatically checks the accuracy of the machine calibration each time the unit is powered on. This saves setup time.
- Cuff Alert: alerts user of cuff status when attempt is made to set the machine to stand-by.
- Cuff Lockout: feature prompts the user to confirm the deflation command during bilateral or IVRA procedures in order to reduce complications due to sudden cuff deflation.
- Six-hour Lithium Ion Battery Backup: maintains pressure if AC power is temporarily lost.
- Color-Coded Cuffs: from 8 inches to 42 inches accommodate virtually all patients and limbs.
- Carrying Handle: makes the system easy to transport, and includes pull-out hangers for storage of cuffs and hoses. The lightweight, portable unit can be mounted on an IV pole or placed on a table.
- Innovative Limb Occlusion Pressure (LOP) feature
- Uses ambient air
- Uses electronic and microprocessor regulated pressure
- Dual Port, Dual Cuff system: for simultaneous use of two dual port cuffs each with offering independent pressure and time regulation
- Facilitates dual port, dual bladder cuff usage for IVRA/Bier Block procedures
- Uses dedicated ports for supplying and measuring pressure which allows for fast and precise pressure regulations
- Visual and audible alarms activated when an unsafe condition is detected
Limb Occlusion Pressure (LOP)
- Technology that’s designed to calculate a patient’s pressure at an individual level and apply a minimum amount of tourniquet pressure needed to occlude a limb at a specific time for a specific patient. Lower tourniquet cuff pressure reduces postoperative wound complications after TKA.
Touch Screen
- An 8.4” color touchscreen that increases visibility to read across operating rooms.
- Other great features including a 6 hour lithium Ion battery and dual ports
Advanced Leak Detection
- Technology that monitors a cuff for minor variations intraoperatively with the intention of reporting potential cuff/hose leaks.
Pre-op Cuff Test
- Technology that allows for bedside testing of cuff pre-operatively to ensure proper function
